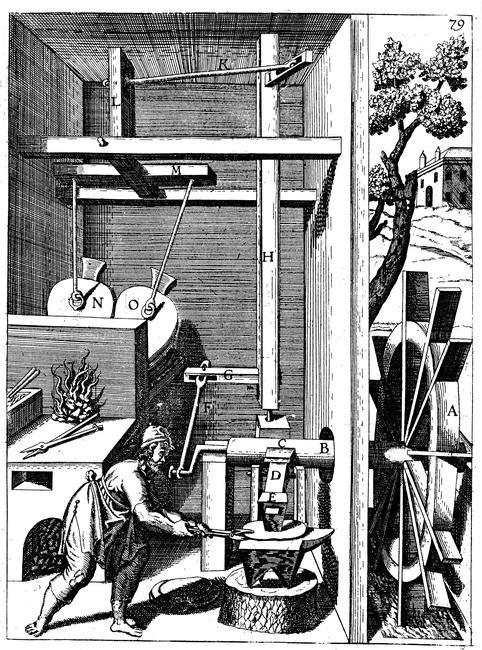

Forge with bellows driven by an undershot water wheel through cranks, 1673.
Forge with bellows driven by an undershot water wheel through cranks, 1673. From Theatrum Machinarum Novum by Georg Andreas Bockler. (Nuremberg, 1673).
Unique Identifier AR917713
Type Image
Purpose Public
Size 2788px × 3760px
Photo Credit HIP / Art Resource, NY
